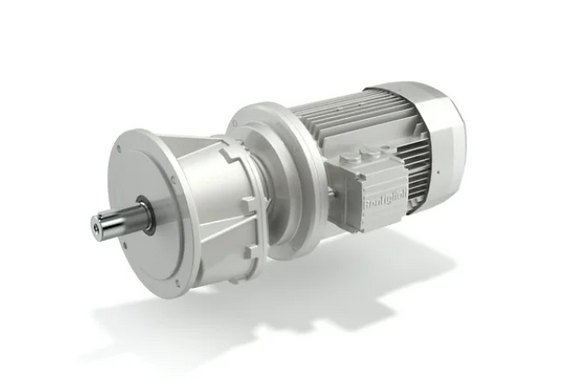

AS Series (In-Line)

The AS Series benefits from years of recognition in the industry and has become a best seller for quarry and mining applications, where reliability and low maintenance are key factors. These Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX) and reluctance motors (BSR) can be coupled with the AS Series: Thanks to the breadth of its e-motor portfolio, Bonfiglioli can always provide customers with the perfectly balanced solution, in terms of efficiency, dynamics and cost-effectiveness.

Key Features

  • Space-optimized design

  • Compact motor coupling

  • Unibox Housing

  • Forced gears-shafts coupling

  • ServoMotor coupling

  • Wide ratios range (4 Stages)

  • (Atex) gearbox for explosive environments 2G/2D

Specifications

  • Torque range: 442 ... 106,208 in-lb

  • Gear ratios: 4.34 ... 202.1

  • Transmissible Mechanical Power: 0.09 ... 222 kW

  • Output: Feet mounting, Flange mounting

Key benefits

  • Minimized mounting space

  • Reduced installation space and wide output speed selection range

  • Reduced standard backlash

  • Highly dynamic, energy-saving solution

  • Wide output speed selection range

Motors

Input with solid shaft
Input with e-motor coupling:

  • BN, BE, BX [IEC asynchronous]

  • BSR [IEC reluctance]

  • BS [IEC single phase]
